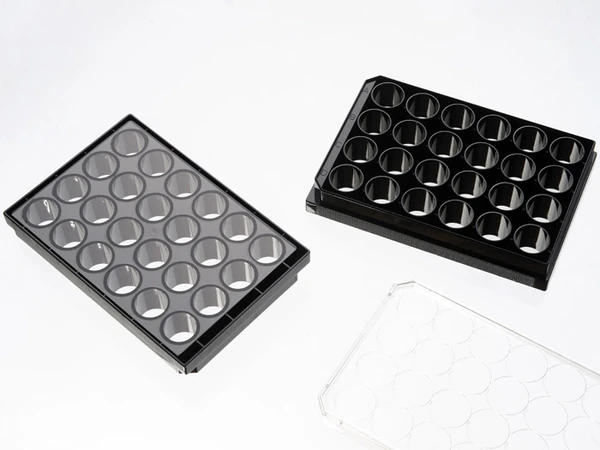

Placa de fondo de vidrio de 24 pocillos con cubierta de vidrio de alto rendimiento n.° 1.5 PAQUETE D

SKU: 00000907
  • Marca:
  • Cellvis
Precio a consultar. Complete el formulario para obtener un presupuesto.
Solicitar información
Código fabricante
P24-1.5H-N
Medida venta
N/A
Presentación
20/case
Peso
No disponible
Descripción ampliada

Features:

  • Suitable for long term tissue culture
  • Manufactured in a class 100,000 clean room
  • Frame made from virgin polystyrene.
  • German high quality cover glass of superior optical quality, glass thickness is 0.170±0.005mm
  • A USP class VI adhesive is used to assemble the cover glass and the plate.
  • Sterilized by Gamma radiation.
  • Conforms to ANSI/SBS 1-2004 standards

Suitable for:

  • Differential Interference Contrast (DIC)
  • Widefield Fluorescence
  • Confocal Microscopy
  • Two-Photon and Multiphoton Microscopy
  • Fluorescence Recovery After Photobleaching (FRAP)
  • Förster Resonance Energy Transfer (FRET)
  • Fluorescence Lifetime Imaging Microscopy (FLIM)
  • Total Internal Reflection Fluorescence (TIRF)
  • Super-Resolution Microscopy

Recommended for:

  • Confocal Microscopy
  • Super-Resolution Microscopy

Technical specifications

» View technical specification of different coverslips.

Frame color black
Coverslip #1.5 high performance cover glass (0.170±0.005mm)
Length 127.50 mm
Width 85.25 mm
Height 20 mm
Height with lid 22.5 mm
Stacking height (with lid) 19.5 mm
Bottom height 0.83 mm (bottom of coverslip to plate bottom)
Bottom height tolerance ±50μm (whole plate)
Well to well center distance 19.3 mm
Well bottom area 190 mm2
Maximum volume 3.6 ml
Temperature Range -20°C to 50°C

Dimension diagram (units in mm)

24 Well glass bottom plates P24-1.5H-N dimension
