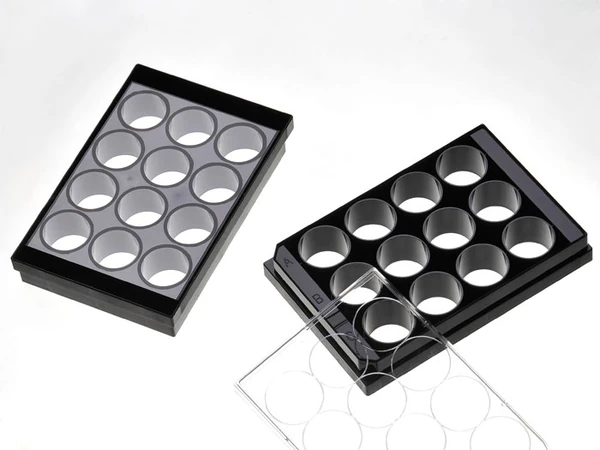

Placa de 12 pocillos con fondo de cubreobjetos de polímero similar al vidrio n.° 1.5. 20 unidades po

SKU: 00001626
  • Marca:
  • Cellvis
Precio a consultar. Complete el formulario para obtener un presupuesto.
Solicitar información
Código fabricante
P12-1.5P
Medida venta
N/A
Presentación
20/case
Peso
No disponible
Descripción ampliada

Features:

  • Suitable for long term tissue culture
  • Frame made from virgin polystyrene.
  • Better cell attachment with #1.5 glass-like polymer cover slip (0.175±0.010mm)
  • Manufactured in a class 100,000 clean room
  • A USP class VI adhesive is used to assemble the coverslip and the plate.
  • Sterilized by Gamma radiation.
  • Conforms to ANSI/SBS 1-2004 standards

Suitable for:

  • Differential Interference Contrast (DIC)
  • Widefield Fluorescence
  • Confocal Microscopy
  • Two-Photon and Multiphoton Microscopy
  • Fluorescence Recovery After Photobleaching (FRAP)
  • Förster Resonance Energy Transfer (FRET)
  • Fluorescence Lifetime Imaging Microscopy (FLIM)
  • Super-Resolution Microscopy

Recommended for:

  • Confocal Microscopy

Not suitable for:

  • Total Internal Reflection Fluorescence (TIRF)

Technical specifications

» View technical specification of different coverslips.

Frame color black
Coverslip #1.5 glass-like polymer (0.175±0.010mm)
Length 127.50 mm
Width 85.35 mm
Height 19.95 mm
Height with lid 22.50 mm
Stacking height (with lid) 19.45 mm
Bottom height 0.83 mm (bottom of coverslip to plate bottom)
Well to well center distance 26.00 mm
Well bottom area 382 mm2
Maximum volume 7.2 ml
Temperature Range -20°C to 50°C

Dimension diagram (units in mm)

12 Well glass bottom plates P12-1.5P dimension
