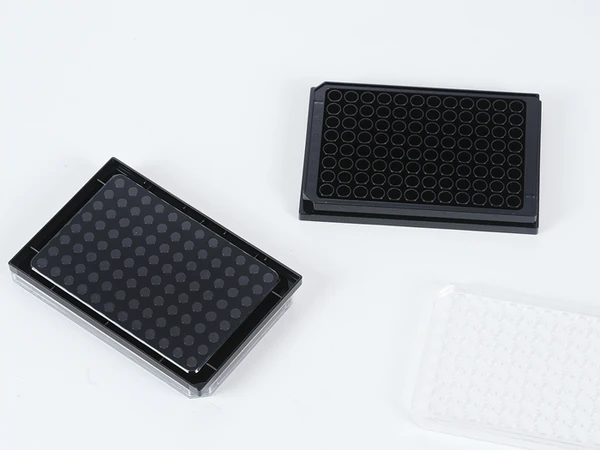

Low Base 96 Well glass bottom plate with high performance #1.5 cover glass 20/case

SKU: 00028245
  • Marca:
  • Cellvis
Descuento -5%
141,55 € 149,00 € sin IVA
Precio sujeto a posibles modificaciones
Pack/Lote: N/D
Stock: 2 disponibles
  Puedes solicitar por encima del stock
Entrega inmediata: 2 días.
Código fabricante
P96LB-1.5H
Medida venta
N/A
Presentación
20/case
Peso
No disponible

Length:
127.60 mm
Coverslip:
#1.5 high performance cover glass (0.170±0.005mm)
Frame color:
Black
Height with lid:
17.64 mm
Bottom height:
0.26 mm (bottom of coverslip to plate bottom)
Bottom height tolerance:
±50Μm (whole plate)
Stacking height (with lid):
16.70 mm
Well to well center distance:
9.00 mm
Lid dimension:
127 * 85 * 9.3 mm
Height:
14.40 mm
Width:
85.60 mm
Descripción ampliada

Features:

  • Suitable for long term tissue culture
  • Manufactured in a class 100,000 clean room
  • Frame made from virgin polystyrene
  • German high quality cover glass of superior optical quality, the cover glass has a thickness of 0.170±0.005mm
  • A USP class VI adhesive is used to assemble the cover glass and the plate.
  • Sterilized by Gamma radiation.
  • Conforms to ANSI/SBS 1-2004 standards

Suitable for:

  • Differential Interference Contrast (DIC)
  • Widefield Fluorescence
  • Confocal Microscopy
  • Two-Photon and Multiphoton Microscopy
  • Fluorescence Recovery After Photobleaching (FRAP)
  • Förster Resonance Energy Transfer (FRET)
  • Fluorescence Lifetime Imaging Microscopy (FLIM)
  • Total Internal Reflection Fluorescence (TIRF)
  • Super-Resolution Microscopy

Recommended for:

  • Confocal Microscopy
  • Super-Resolution Microscopy

Technical specifications

» View technical specification of different coverslips.

Frame color black
Coverslip #1.5 high performance cover glass (0.170±0.005mm)
Length 127.60 mm
Width 85.60 mm
Height 14.40 mm
Height with lid 17.64 mm
Stacking height (with lid) 16.70 mm
Bottom height 0.26 mm (bottom of coverslip to plate bottom)
Bottom height tolerance ±50μm (whole plate)
Lid dimension 127 * 85 * 9.3 mm
Well to well center distance 9.00 mm

Dimension diagram (units in mm)

96 Well glass bottom plates P96LB-1.5H dimension
